VR-Architecture

একটি 3D মডেল মধ্যে একটি প্রস্তুত বা এমনকি সহজ হাতে আঁকা মেঝে পরিকল্পনা রুপান্তর।

VR-Architecture is a technology demonstration of creating a 3D model of a single floor or a whole building on an Android™ device using floor plan images or hand-drawn sketches. It demonstrates an implementation of an algorithm that accepts image files of floor plans either saved to storage or taken with an Android device camera from a hand-drawn sketch or a printed picture and converts them into a 3D model of a specific floor or a high-rise building. The user can open the resulting DWG file in ViewER or ViewER-VR to see the 3D representation of a corresponding model.

VR-Architecture demonstrates the following features:

• Loading multiple floor plans from storage.

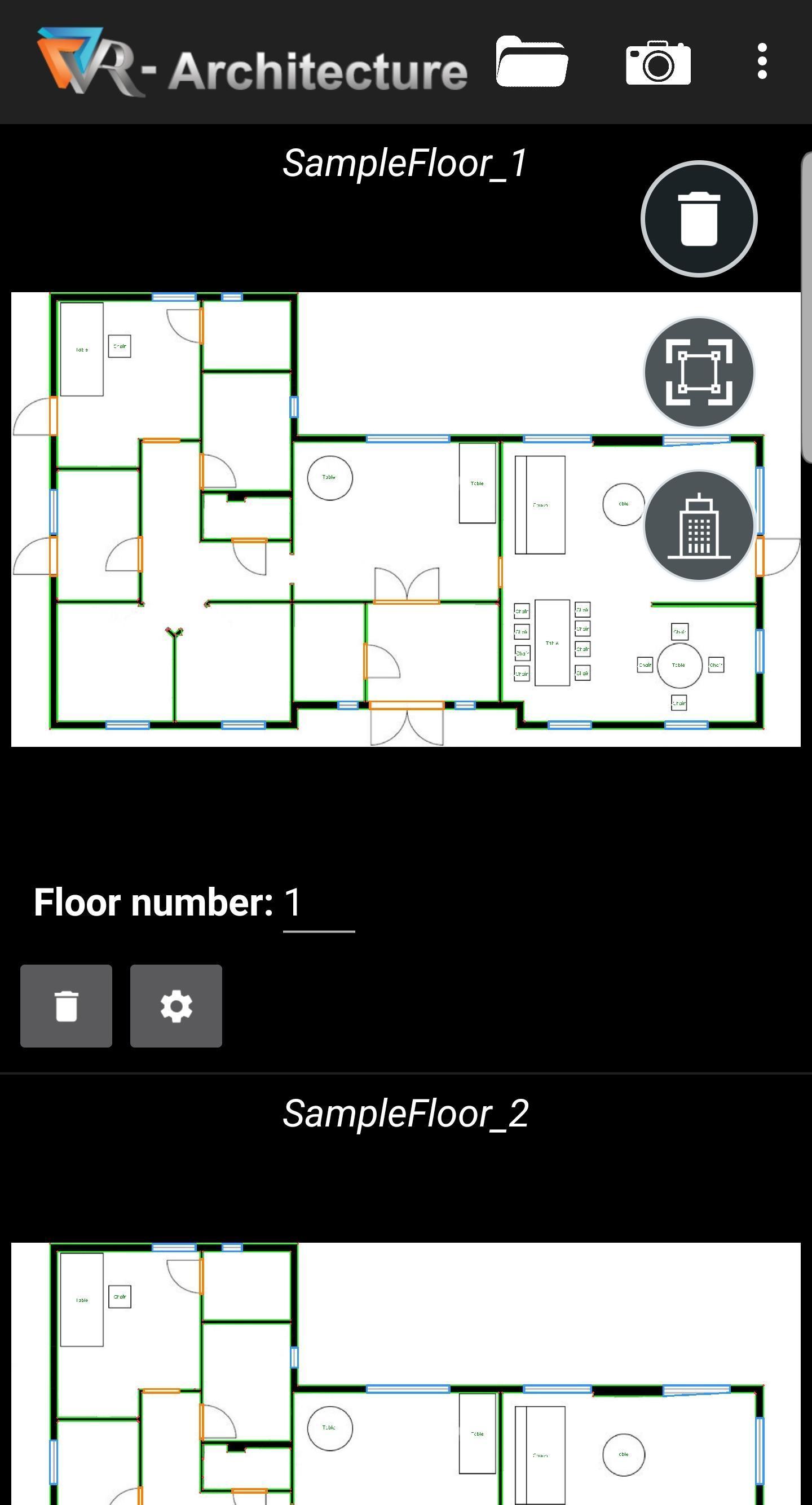

• Recognizing a floor plan from the selected images and building their 2D models.

• Identifying doors, windows, walls, and furniture.

• Adjusting parameters for true-to-life recognition.

• Building a 3D model and saving it in a DWG file.

• Viewing the resulting models in ViewER or ViewER-VR.

• Viewing the resulting model in AR mode.

• Saving the generated models to SD card, Dropbox, or Google Drive.

User-friendly and intuitive UI doesn’t require any special knowledge or experience with CAD or AEC software. 

Link to the demo video: https://www.youtube.com/watch?v=4AK3ATh26h4&feature=youtu.be
